The John Deere D140 law tractor runs on SAE 10W-30 engine oil. John Deere sells their own Turf-Gard oil but any quality 10W-30 will work. The engine holds 2 quarts (1.9 liters) with a filter change.
You’ll occasionally hear about owners running 5W-30 synthetic for better cold-start flow or even 5W-40 for specific performance reasons. These work, but 10W-30 remains the standard recommendation, particularly if you’re mowing in warmer weather.
While 10W-30 is the factory standard, understanding the differences between 5W-30 and 10W-30 can help you decide if a synthetic upgrade is necessary for your specific climate.
The D140 operates on a Briggs & Stratton 2-cylinder, air-cooled V-Twin engine rated at 22 gross horsepower. It’s a vertical-shaft gasoline engine. Displacement varies depending on which source you check: some list it as 656cc, others as 724cc. This inconsistency likely comes from different model years or regional variants.
Briggs & Stratton built the original powerplant, specifically the 40-series model. John Deere often uses these engines in their economy line of tractors sold through home-improvement stores. The D140 is one of those models.
John Deere D140 Recommended Engine Oils
While John Deere Turf-Gard is the OEM recommendation, several aftermarket 10W-30 oils provide comparable protection for the D140’s Briggs & Stratton engine at different price points.
Mobil 1 Extended Performance 10W-30
Mobil 1 Extended Performance 10W-30
Mobil 1 Extended Performance 10W-30 is a compatible aftermarket alternative for the D140.
The formulation uses synthetic basestocks with a balanced additive system focused on preventing deposits and sludge buildup. At 100°C, the viscosity measures 10.2 cSt with a viscosity index of 147. HTHS (High Temperature High Shear) viscosity sits at 3.1 mPa·s at 150°C, which provides adequate film strength under load. Pour point reaches -39°C, and flash point hits 232°C.
The oil meets API SN/SM/SL/SJ and ILSAC GF-5 standards. It carries approvals for General Motors 6094M and API CF. Sulfated ash content measures 0.8%, and density comes in at 0.856 g/ml at 15.6°C.
For the D140, this oil works well if you want synthetic protection without paying for OEM branding.
Also compatible with:
- High-performance turbocharged and supercharged engines
- Multi-valve fuel-injected engines
- SUVs and light trucks
If you are deciding between different Mobil 1 variants, our guide on Mobil 1 High Mileage vs. Extended Performance explains the technical differences in their additive packages.
Stens Shield 4-Cycle Engine Oil SAE 10W-30
Stens Shield 770-132 SAE 10W-30
Stens Shield 4-Cycle Engine Oil SAE 10W-30 is a compatible aftermarket equivalent for the D140. It’s formulated specifically for small air-cooled engines in outdoor power equipment like lawn mowers and generators, which makes it a direct fit for the Briggs & Stratton engine in the D140.
What sets Stens apart is the high zinc and phosphorus content designed to reduce wear in flat-tappet engines common to small power equipment. The additive package also targets rust, corrosion, and thermal breakdown.
Stens markets this as an all-season oil that handles a broad temperature range. For the D140’s air-cooled engine that runs hot during extended mowing sessions, the anti-wear additives and corrosion protection matter more than the API rating.
This oil works well if you’re looking for a mid-tier option between generic 10W-30 and premium synthetic. It’s designed specifically for the kind of duty cycle a lawn tractor sees: seasonal use, high temperatures, and extended run times under load.
Also compatible with:
- Walk-behind mowers
- Generators
- Other small air-cooled 4-cycle engines
VP Racing Fuels 4-Cycle Oil SAE 10W-30
VP Racing 2927 4-Cycle Engine Oil
VP Racing Fuels 4-Cycle Oil SAE 10W-30 is a compatible full synthetic option for the D140. VP designed this oil specifically for air-cooled engines in outdoor power equipment.
The formulation uses a full synthetic base that provides dual-grade viscosity for high film strength and low oil consumption. VP emphasizes wear protection and biodegradability in the additive package. The oil exceeds API SJ requirements and meets specifications for Kawasaki, Honda, and Briggs & Stratton engines.
For the D140, this oil works if you want synthetic protection with a focus on air-cooled applications. VP’s background in racing fuels translates to formulations that handle heat and stress well.
The main advantage here is the film strength at operating temperatures. Air-cooled engines run hotter than liquid-cooled equivalents, and the synthetic base maintains protection better than conventional oils when temperatures climb.
Also compatible with:
- Kawasaki air-cooled engines
- Honda small engines
- Briggs & Stratton equipment
STP Premium Small Engine 4-Cycle Oil SAE 10W-30
STP Premium Small Engine 4 Cycle Oil Formula
STP Premium Small Engine 4-Cycle Oil SAE 10W-30 is an after-market substitute for the D140. It’s formulated for air-cooled small engines in lawn mowers and outdoor power equipment.
The synthetic blend uses hydrotreated heavy paraffinic distillates as the base oil. Kinematic viscosity measures 64 cSt at 40°C and ranges from 9.5 to 11.7 cSt at 100°C. Pour point sits around 0°C, which means it flows reasonably well in moderate cold weather but won’t match full synthetics for extreme cold starts. Boiling point exceeds 207°C.
STP emphasizes antioxidants in the additive package to combat thermal breakdown and oil thickening during extended use. The formulation also targets low oil consumption and improved cold-weather starting compared to conventional oils.
STP recommends this oil for temperatures from 40°F upward, which covers most mowing season conditions. For the D140, this works as a budget-friendly middle ground between conventional and full synthetic oils.
Also compatible with:
- Briggs & Stratton engines
- Air-cooled lawn mower engines
- Trimmers and similar equipment
John Deere Turf-Gard: OEM Oil for D140
John Deere Turf-Gard SAE 10W-30 Oil
John Deere Turf-Gard is the OEM oil for the D140. It’s a premium 4-cycle engine oil formulated for air-cooled and liquid-cooled engines in riding mowers, walk-behinds, and utility equipment. The formulation emphasizes wear protection, oxidation resistance, and sludge control to handle the heat and stress that small engines see during extended mowing sessions.
Turf-Gard comes in three viscosity grades: SAE 10W-30, 10W-40, and 5W-30. For the D140, you want the 10W-30 variant (part numbers TY22029 or TY22076). The 5W-30 option (part number MCTY25121) works if you need better cold-start flow, though 10W-30 remains the standard recommendation.
The oil meets API SN/GF-6 standards, which represents current specification requirements for gasoline engines. Flash point sits above 220°C, and density measures 0.86 g/cm³ at 15°C. The formulation uses a high viscosity index and shear-stable base oils that resist thinning under load.
Also compatible with:
- Lawn tractors with 4-cycle gasoline engines
- Walk-behind mowers
- Generators
- Utility vehicles
Finding a Replacement Oil Filter for the D140
The John Deere D140 uses oil filter part number AM125424 (sometimes listed as AM125424C). You can buy this directly from John Deere dealers, JohnDeereStore.com, or home-improvement stores like The Home Depot. Amazon stocks both OEM and aftermarket filters with fast shipping, which beats driving to a dealer when you need the filter today.
John Deere Original Equipment Oil Filter #AM107423
John Deere also sells home maintenance kits that bundle the oil filter with engine oil, air filters, and spark plugs. Kit LG275 fits most D140s, though some serial numbers require kit LG263 instead. These kits make sense if you’re doing a full service, but you’ll pay more than buying individual components.
An example of a maintenance kit for the JD D140.
Aftermarket Filter Options
Aftermarket filters cost less and often offer larger capacity than the OEM filter. The Fram Tough Guard TG3614 is a direct replacement. The Wix 51348 works as well and provides more filter media since it’s a larger automotive-style filter.

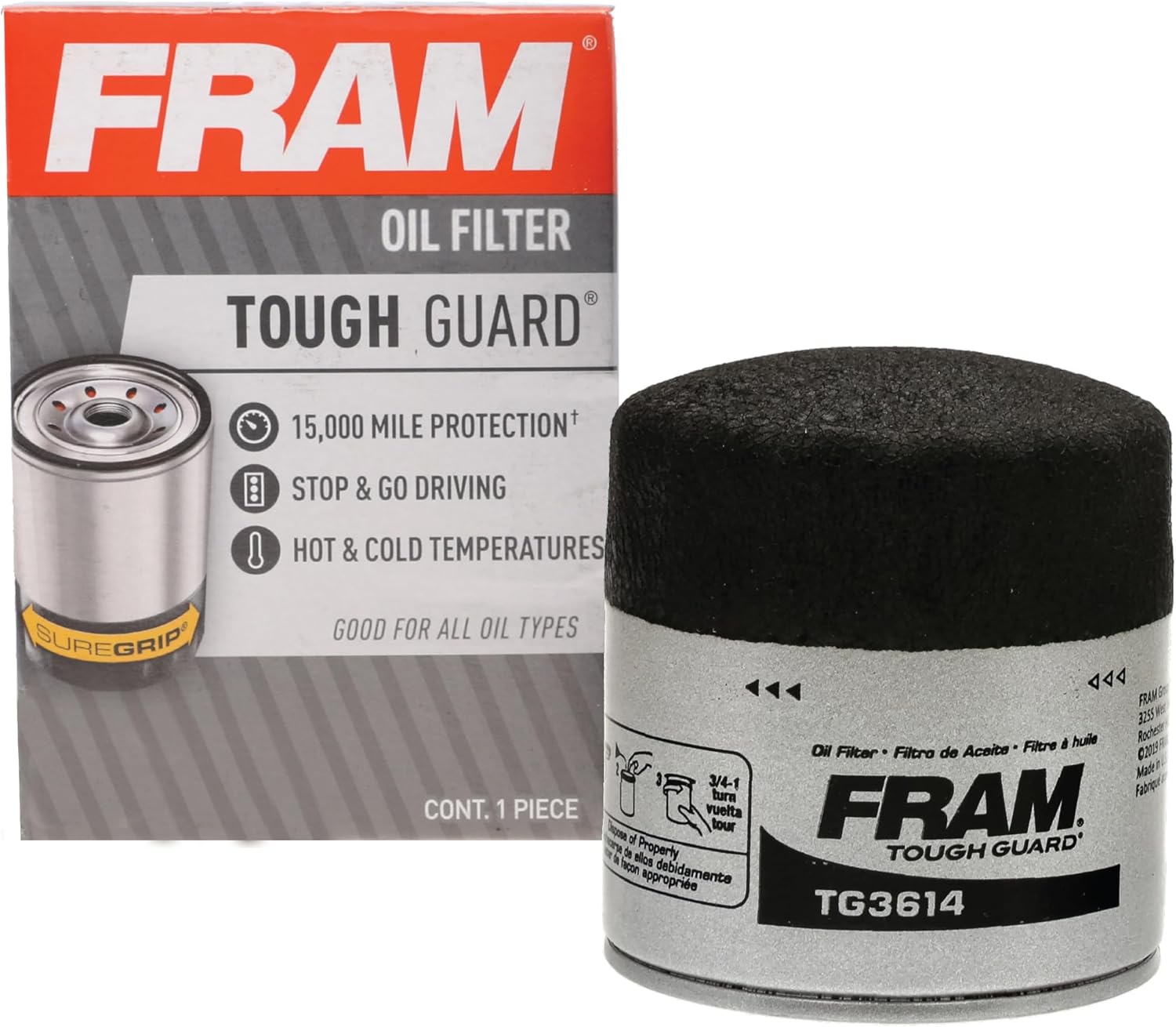

FRAM Tough Guard TG3614
Micro Guard makes the MSL51348, which you can find at O’Reilly Auto Parts. STP offers model 3614, and some owners run the longer STP 3600 if there’s enough clearance.
The larger aftermarket filters hold more oil and provide extended surface area for filtration. This matters if you’re pushing your change intervals or running the mower hard during peak season.
Installing the Filter
Before threading on the new filter, rub a thin film of engine oil on the rubber gasket. This prevents the gasket from seizing to the engine block and makes removal easier next time.
Install the filter hand-tight only. Don’t use a wrench. Over-tightening compresses the gasket too much and can cause leaks or make the filter impossible to remove without damage.
To access the filter on the D140, you need to remove a plastic trim cover on the side of the engine. Use an 8mm socket to pull the cover off, then you’ll have room to reach the filter.
Closing Notes
The D140’s air-cooled Briggs & Stratton engine doesn’t have a radiator or coolant system to regulate temperature. Your oil does that work instead. It absorbs heat that would otherwise break down internal components.
A quality 10W-30 with strong anti-wear additives creates a protective film between moving parts during high-RPM operation. The debate between OEM oil and synthetic alternatives will continue, but consistency matters more than brand loyalty. Regular changes with any quality oil will outlast irregular service with premium products.
The D140 makes access reasonably straightforward once you remove the side panels. The push-and-twist drain valve speeds up the process compared to traditional drain plugs, and the cardboard trick keeps things clean.
Stay on top of your intervals and use the right viscosity. That’s what keeps the engine running.
