ASTM D6210 is the industry baseline for fully-formulated glycol-based coolants in heavy-duty engines. For engines that run wet-sleeve liners, this is the specification that prevents liner pitting, the cavitation damage that occurs when light-duty coolants lacking the right additive package allow vacuum bubbles to implode against cylinder walls.
What separates D6210 from lighter-duty specs like ASTM D3306 comes down to how the coolant arrives.
D6210 products are fully pre-charged, meaning all necessary inhibitors are present at the time of manufacture. No initial SCA dose required. They’re also formulated to handle internal scaling on hot surfaces like the engine head, upper cylinder liner, and liquid-cooled exhaust manifolds.
Fluids that meet this standard remain effective for a minimum of two years in a properly maintained system.
Major heavy-duty OEMs including Caterpillar and Cummins either require or explicitly approve D6210-compliant coolants. Meeting the spec is a necessary starting point, but it doesn’t cover everything.
Proprietary standards like Cat EC-1 layer additional requirements on top of D6210, and certain engine platforms have specific elastomer compatibility concerns that the ASTM spec alone doesn’t address.
Unique Requirements for ASTM D6210
Shell Rotella ELC Extended Life, Concentrate
What separates D6210 from lighter-duty specs comes down to a few things. First, it requires protection against cavitation corrosion, also called liner pitting, which is a common failure mode in wet sleeve diesel engines.
Light-duty specs like ASTM D3306 don’t require this. Second, D6210 coolants are “fully-formulated,” meaning they arrive pre-charged with all necessary inhibitors, including Supplemental Coolant Additives (SCAs). You do not need to add an initial SCA charge when filling the system, which is a requirement with coolants that only meet ASTM D4985.
Third, D6210 builds on D3306. A coolant must first pass all of D3306’s physical and performance tests before the heavy-duty requirements are layered on top. The spec also mandates scale prevention on internal hot surfaces like the engine head, upper cylinder liner, and liquid-cooled exhaust manifolds, and requires a minimum service life of two years in a properly maintained system.
How to Choose the Right D6210 Coolant for Your Engine
Star Tron Star-Cool Premium Synthetic PG
Finding the right coolant starts with understanding that no single product works across every application. Different engines require specific additive packages, and using the wrong one can cause component damage that isn’t always obvious until it’s too late.
Step 1: Start with your owner’s manual
Your owner’s manual or Operation and Maintenance Manual (OMM) is the controlling document for your equipment. Before looking at any product, read what your manufacturer requires. It will list the primary recommendation and any secondary specifications you need to match.
Step 2: Identify the required ASTM specification
From there, establish the baseline standard your application calls for. ASTM D3306 covers light-duty automotive systems — passenger cars and light trucks. ASTM D6210 is the baseline for heavy-duty engines, particularly those with wet-sleeve liners. Never use a coolant that only meets D3306 in a heavy-duty diesel engine. It lacks the additives required to prevent liner pitting and cavitation.
Step 3: Determine the inhibitor technology
Coolants are not interchangeable across chemistry types, and mixing them can cause chemical drop-out or reduce service life. The three main types are:
IAT (Inorganic Acid Technology): The conventional formulation that requires frequent maintenance and Supplemental Coolant Additives (SCAs).
OAT (Organic Acid Technology): The true extended-life chemistry that relies on carboxylate inhibitors. Many manufacturers have transitioned to OAT and HOAT coolant formulations to extend service intervals.
HOAT (Hybrid OAT): A blend of organic and inorganic inhibitors common in European and Asian applications. You will often see this chemistry in specialized G12-style coolant equivalents used in modern cooling systems.
Step 4: Match the OEM specification
ASTM standards set a quality floor, but OEM specifications ensure the right chemistry for your engine’s specific materials. Check the product data sheet for these approvals: Caterpillar requires Cat EC-1, Cummins requires CES 14603, General Motors specifies GWM3420 (DEX-COOL), and John Deere prefers its proprietary COOL-GARD. A coolant can meet D6210 and still fall short of these requirements.
Step 5: Check for specific chemical compatibility
Two things to verify in the fine print. First, elastomer compatibility. Some OAT coolants contain 2-EH (2-Ethylhexanoic acid), which can cause silicone seals and gaskets to shrink and leak.
If your engine uses silicone components, such as certain high-performance Cummins diesel models, confirm the coolant is 2-EH free.
Second, nitrite content. nitrite protects iron components against cavitation effectively, but it can degrade aluminum in modern high-temperature engines. Many current emissions-compliant engines mandate nitrite-free OATs specifically for this reason.
Step 6: Choose your concentration and water source
A 50/50 prediluted solution is the simplest way to avoid mixing errors. If you’re using concentrate, mix it only with distilled, deionized, or demineralized water. Tap water and softened water are not acceptable — both can introduce minerals that lead to scale buildup on internal engine surfaces.
Step 7: Ignore the color
Coolant color is not a compatibility indicator. Manufacturers use dyes for identification purposes, and the same color can appear across completely different chemistries. Yellow, orange, green, red, and purple coolants can all meet or fail to meet the same specifications regardless of how they look. Always verify the ASTM and OEM approvals on the label, not the color of the fluid.
Coolant Chemistry for ASTM D6210
CAT 339-3768 Diesel Engine Antifreeze/Coolant with Bittering Agent
Meeting ASTM D6210 means a coolant clears the baseline for heavy-duty use, but it does not guarantee it’s the right fit for every engine. Many OEMs layer their own requirements on top of the spec, and the differences between D6210-compliant products matter.
Elastomer compatibility is one area where this plays out. Some heavy-duty OAT (Organic Acid Technology) coolants that meet D6210 contain 2-EH (2-Ethylhexanoic acid), an inhibitor linked to damage in silicone seals, hoses, and gaskets.
Cummins, for example, uses silicone components in certain engines and specifically requires 2-EH-free coolants to prevent leaks and distortion.
Inhibitor chemistry is another distinction. D6210 coolants can be nitrited or nitrite-free. Nitrite is effective for cavitation protection, but it can damage aluminum components in modern high-temperature, high-flow engines. Many newer engine platforms now mandate nitrite-free OATs, while others still require nitrites. You need to know which camp your engine falls into.
Then there are proprietary OEM standards that exist alongside D6210 entirely. Caterpillar requires extended life coolants to pass their EC-1 specification. Cummins may require products registered to CES 14603. Passing D6210 alone does not satisfy these.
Finally, D6210 covers three distinct formulation types: Conventional (IAT), Organic Acid (OAT), and Hybrid (HOAT). Mixing these technologies can shorten service life or compromise protection, even if both products individually meet the spec.
Check your owner’s manual for the specific coolant technology required and verify the product’s data sheet lists any relevant OEM approvals alongside ASTM D6210.
What Happens When You Use the Wrong Coolant

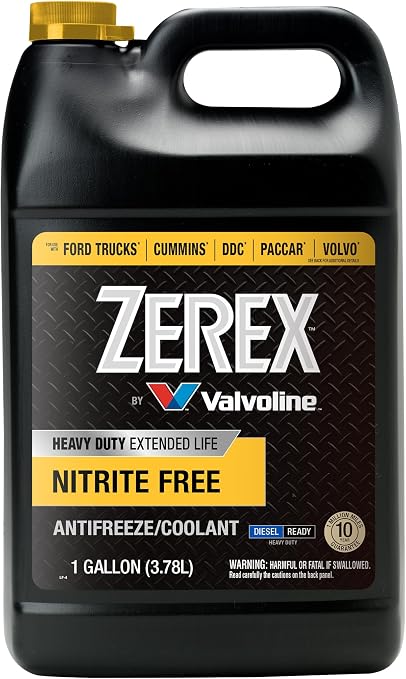

Zerex HD Nitrite Free Extended Life Concentrate
Incompatible coolant doesn’t always cause immediate, visible damage. The consequences tend to build in stages, starting with maintenance headaches and ending, in the worst cases, with an engine that can’t be saved.
The early signs are easy to dismiss. Using an OAT-type coolant in a system designed for conventional chemistry can trigger false low-coolant warnings and check engine lights.
Mixing brands or inhibitor types shortens the effective service life of the fluid, pushing change intervals well below what the OEM publishes. Warranty coverage can disappear quietly too.
Caterpillar explicitly states that failures resulting from non-recommended fluids or extended drain intervals are not considered factory defects. In certain applications, wrong concentration can have regulatory consequences as well; failing to maintain the correct mixture in something like a Cat C7.1 can prevent the NOx reduction system from functioning properly.
If the chemistry is incompatible with the engine’s materials, the damage becomes active. OAT coolants containing 2-EHA cause silicone seals, hoses, and gaskets to shrink, dry out, and leak. Nitrites can destroy aluminum components in modern high-temperature engines.
Certain organic acids corrode solder joints in older copper and brass radiators. Mixing incompatible technologies can cause inhibitors to fall out of solution entirely, forming gel compounds and sludge that plug radiators, oil coolers, and small cooling passages.
Using the wrong water source or additive package accelerates scale formation on internal hot surfaces, reducing heat transfer and causing localized overheating.
The worst outcome is irreversible. In heavy-duty diesels, running light-duty coolant that lacks the additives required by ASTM D6210 leaves the engine unprotected against cavitation.
Engine vibrations create vacuum bubbles that implode against the cylinder walls, pitting the liner until coolant breaches the combustion chamber. Plugged cooling loops or restricted flow from chemical fallout can bring an engine to catastrophic overheat failure, particularly in standby applications like fire pumps where there’s no warning before the system is under full load.
Closing Notes
PEAK FINAL CHARGE Global Extended Life Concentrate
Mixing incompatible coolant technologies, even in small amounts, can cause inhibitors to fall out of solution. That chemical dropout introduces abrasive particulates that accelerate wear on water pump components and clogs small cooling passages.
Some OAT formulations can tolerate up to 25% contamination before losing extended-life properties. Others start breaking down at 10%. Know which category your coolant falls into before topping off with whatever is on the shelf.
Finally, remember that the fluid in your cooling system isn’t maintenance-free just because the label says extended life. Check concentration regularly, use the correct top-off product, and don’t mix technologies without verifying compatibility first. The coolant you chose at fill-up can only do its job if what you add to it doesn’t work against it.
