For a 4L609E transmission, a full refill after a complete rebuild requires 11 to 14 quarts, including the torque converter and cooler lines.
The exact amount depends on your torque converter size. A smaller 9.64-inch converter needs about 8.4 quarts, while a larger 11.81-inch converter needs about 11.4 quarts. Trucks and SUVs with a deep pan can push that total up to 14 quarts.
For a standard pan drop service (where you remove the pan, swap the filter, and refill) you only need 5 to 6 quarts. Most of the fluid stays in the torque converter and cooler lines, so you’re only replacing what drains out.
If you’re doing a full DIY fluid exchange using the bucket method, budget 13 to 16 quarts to ensure all the old fluid gets pushed out and replaced.
Dexron VI is GM’s current recommendation for its 4L60E transmission. It’s fully synthetic and backward-compatible with any vehicle that originally called for Dexron III.
Dexron III, often sold as “Dex/Merc,” is still acceptable for older models (pre-2002) and tends to be cheaper, though GM no longer licenses it. Commonly used brands include Valvoline MaxLife, Mobil 1, and Castrol Transmax.
Recommended Transmission Fluids for the 4L60E
Below are some of the most popular and best-rated transmission fluids that are compatible with your 4L60E transmission.
ACDelco Dexron VI Full Synthetic ATF
ACDelco GM OEM Dexron VI Automatic Transmission Fluid
ACDelco Dexron VI Full Synthetic ATF is the OEM fluid for the 4L60E made by ACDelco, the same brand GM uses at the factory. If you want the safest, most straightforward choice, this is it.
It’s full synthetic, backward-compatible with older Dexron specs, and designed to last.
Quick specs
- Type: Full synthetic
- Viscosity: 5.83 cSt @ 100°C / 29.5 cSt @ 40°C
- Color: Red
- Sizes: 1L, 4L, 20L
Older 4L60Es that originally called for Dexron III can run this fluid without modification. It handles temperature extremes better than conventional fluid and resists sludge buildup.
Also compatible with:
- Allison C3, C4
- Ford: Mercon, various WSS-M2C specs
- Toyota/Lexus: T-III, T-IV, Type WS
- Honda/Acura: DW-1, ATF-Z1
- BMW, Mercedes-Benz, VW/Audi, ZF transmissions (see full spec sheet for complete list)
Castrol Transmax Dex/Merc
Castrol Transmax DEX/MERC Automatic Transmission Fluid
Castrol Transmax Dex/Merc is a compatible aftermarket ATF for older 4L60E transmissions. Specifically those built before 2005 that originally called for Dexron III. It meets Dexron IIIH, which is the last generation of that spec before GM moved to Dexron VI.
Quick specs
- Type: Conventional
- Viscosity: 7.2 cSt @ 100°C / 32 cSt @ 40°C
- Color: Red
This is a budget-friendly option for older GM vehicles that don’t need the full synthetic upgrade. It’s not interchangeable with Dexron V. If your application calls for VI, use VI. But for a high-mileage 4L60E getting a routine service, it gets the job done at a lower cost.
Castrol Transmax Dex/Merc is best for owners of older GM trucks or SUVs doing routine maintenance who want a no-frills, cost-effective fluid that meets the original factory spec.
Also compatible with:
- Ford Mercon
Also comes in a top-up container:
ACDelco GM OEM Dexron VI ATF – 1 qt Top-up
Valvoline Dexron VI / Mercon LV Full Synthetic ATF
Valvoline DEXRON VI/MERCON LV ATF Full Synthetic ATF
Valvoline Dexron VI / Mercon LV is a GM-approved, officially licensed full synthetic ATF and a solid aftermarket choice for the 4L60E. It covers the current Dexron VI spec while also working in older units that originally called for Dexron II or III.
Quick specs
- Type: Full synthetic
- Viscosity: 6.0 cSt @ 100°C / 29.5 cSt @ 40°C
- Pour Point: -48°C
- Color: Red
It’s backward-compatible with Dexron II and III, so it works across the full range of 4L60E model years without issue. The added anti-shudder protection could help if your transmission has developed a shudder during light throttle or torque converter lockup.
This is a good pick for anyone who wants a licensed Dexron VI fluid at a lower price point than OEM, without sacrificing spec compliance.
Also compatible with:
- Dexron II, III
- Ford: Mercon LV

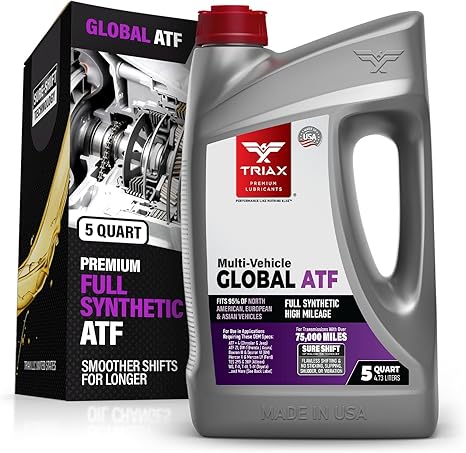

TRIAX Global Synthetic ATF
TRIAX Multi-Vehicle Global ATF Full Synthetic
TRIAX Global ATF is a full synthetic aftermarket fluid compatible with the 4L60E, meeting the Dexron VI spec alongside a wide range of other OEM requirements. It’s compatible with most non-CVT, non-dual-clutch automatics across US, European, and Asian vehicles.
Quick specs
- Type: Full synthetic
- Viscosity: 7.0 cSt @ 100°C / 30.2 cSt @ 40°C
- Pour Point: -50°C
- Flash Point: 210°C
- Color: Red
If your 4L60E is in a truck used for towing, hauling, or off-road, this fluid is worth considering. TRIAX claims 10 to 15°F lower operating temperatures compared to standard ATFs, and the shear resistance is notably high for a fluid this versatile. It also contains elastomers to help restore aging seals on high-mileage units.
Also compatible with:
- Ford: Mercon, Mercon V, Mercon LV, Mercon SP
- Chrysler/Jeep/Dodge: ATF+4, NAG1, NAG2
- BMW, Mercedes-Benz, VW/Audi, ZF (most models pre-2017/2018)
- Toyota/Lexus, Honda/Acura, Nissan, Hyundai/Kia
- Allison TES-295, TES-389
Motul ATF VI
Motul ATF VI 100% Synthetic Automatic Transmission Fluid
Motul ATF VI is a full synthetic aftermarket fluid compatible with the 4L60E. Made in France, it’s a performance-oriented fluid that also covers Dexron II and III applications, making it backward-compatible across all 4L60E model years.
Quick specs
- Type: Full synthetic (Synthese-Technologie)
- Viscosity: 6.1 cSt @ 100°C / 30.5 cSt @ 40°C
- Flash Point: 217°C
- Color: Red
Motul’s formula is tuned for low-temperature response and anti-shudder performance. It also works in the transfer case and power steering system, so one fluid can cover multiple applications on the same vehicle.
It is a good pick for enthusiasts who prefer European performance brands and want a fluid that goes beyond the minimum spec requirement.
Also compatible with:
- GM: Dexron II, III, VI, Dexron HP, Dexron ULV
- Ford: Mercon LV, Mercon ULV
- Honda/Acura: DW-1, ATF-Z1
- Toyota/Lexus: ATF WS, T-IV, JWS 3324
- BMW, Mercedes-Benz, VW/Audi, ZF Lifeguard 6/8/9
- Chrysler/Jeep: ATF+3, ATF+4
Transmission Fluid Change Interval for the 4L60E
The change interval varies wildly because it depends on how you use your vehicle. A new fluid will be needed between 30,000 to 60,000 miles. If your vehicle works hard (towing, off-road, stop-and-go traffic) aim for the shorter end of that range.
Neglected fluid is one of the most common reasons 4L60Es fail early. A well-maintained unit can realistically reach 300,000 miles. One that never gets a fluid change might not make it past 100,000.
Don’t rely on “lifetime fill” claims. Mechanics widely consider this a myth. Transmission fluid breaks down over time, loses its protective properties, and needs to be replaced on a schedule.
Signs that Your 4L60E Needs a Fluid Change
Healthy transmission fluid is pink to cherry red. Dark brown or black fluid means it’s overdue for a change. A burnt smell means the fluid has been overheated and has already started breaking down. At that point, a fluid change is urgent.
When you take out the pan, check for metallic residues. Fine metallic powder is normal wear. Large metal chunks could mean internal damage, and a fluid change alone won’t fix it.
Slipping between gears, sluggish upshifts, or a transmission that won’t engage fourth gear are all signs the fluid isn’t doing its job. If the vehicle won’t move at idle without revving past 1,800 RPM, check your fluid level immediately. You may be low or losing pressure.
Fluid that runs consistently above 250°F breaks down fast. If your transmission is running hot, the fluid and the cooling circuit both need attention.
Even with no symptoms, change the fluid and filter every 30,000 to 60,000 miles. Some mechanics joke that “lifetime fill” only refers to the lifetime of the warranty.
Closing Note
The 4L60E is reliable when maintained and fragile when ignored. Its two most common failure points (3-4 clutch pack burnout and sunshell failure) are both accelerated by degraded fluid and neglected service intervals.
Heat is the primary killer. If you tow regularly or drive hard, many GM owners recommend an auxiliary cooler. Keep operating temps below 250°F. Check your fluid level with the engine warm, idling in park, on level ground.
